WABCO

1 x Electrically Controlled WABCO Air Dryer 4324251010, 20873849,20700794

1 x Electrically Controlled WABCO Air Dryer 4324251010, 20873849,20700794

£353.00 GBP
£0.00 GBP £353.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

We ship globally so if you are outside the UK and you have issues with shipping please contact us so we can advise you accordingly.

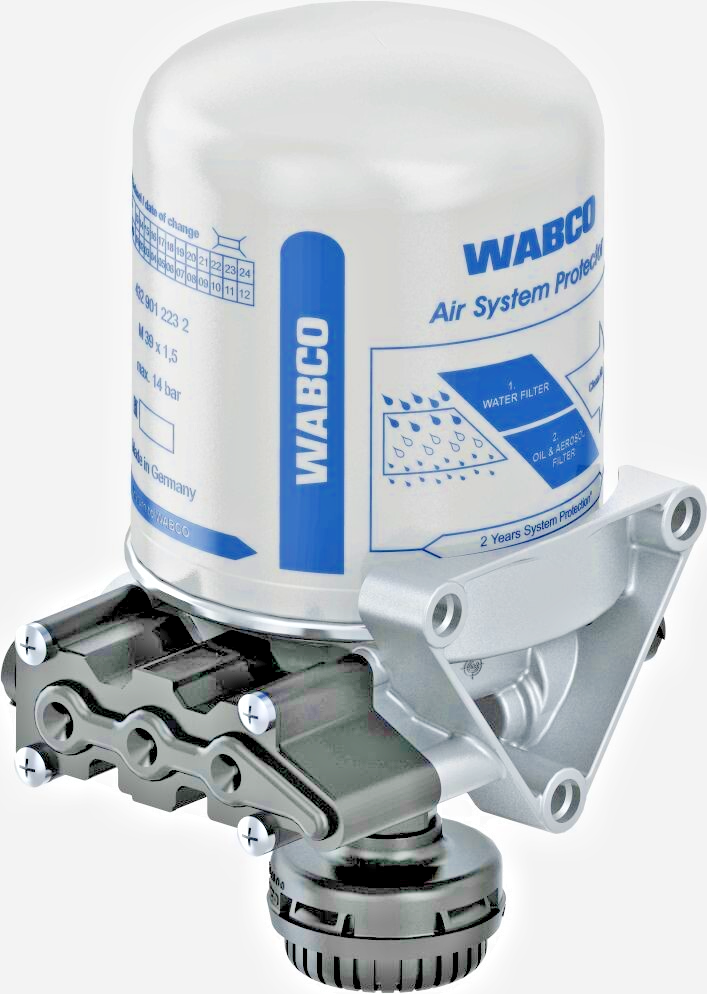

Brand New WABCO Electrically Controlled Air Dryer (4324251010) suited for a variety of truck and bus applications

TECHNICAL SPEC


Brand: WABCO

Part type: Premium original quality

Calculated Volume (dm³): 7.7097

Cartridge type: Air System Protector Plus M39

Comments: Volvo FH, FM

Electrical connection: DIN 72585 A1-2.1-1-Sn/K1

Exhaust Thread female: M 22x1.5

Heating connection: Bayonet DIN 72585-A1-2.1-1-Sn/K2

Heating system: Yes

Max. operating pressure: 1 3.0 bar

Opening pressure 13.00 bar

Port thread 1: M22 x 1.5 JED-388-4

Port thread 12: M16 x 1.5

Port thread 21: M22 x 1.5 JED - 388-4

Port thread 4/23: M12 x 1.5

Silencer: 432 407 060 0

Solenoid connection: Bayonet DIN 72585 A2-4.1-Sn/K1

Technical specification: OE specification

Temperature range: -40°C to +65°C

Unloader: No

Voltage: 24V

Size (mm x mm x mm) = 293 x 179 x 147

UPC: 193133464518

Weight (kg): 3.95


CROSS REFERENCES

DAF: 0882965,0883259

PACCAR: 0883259

SCANIA: 1932701

UD TRUCKS: 47500NA04B

VDL: 30157175

VOLVO TRUCK : 20873849, 20700794, 20466522

VOLVO BUS: 20884103,21398254,21480094,21620172



VEHICLE APPLICATION

VOLVO TRUCKS - FM, FM9, FM12, FH, FH12, FH16, truck models

VOLVO BUS: B13R, B5LH bus models
