WABCO

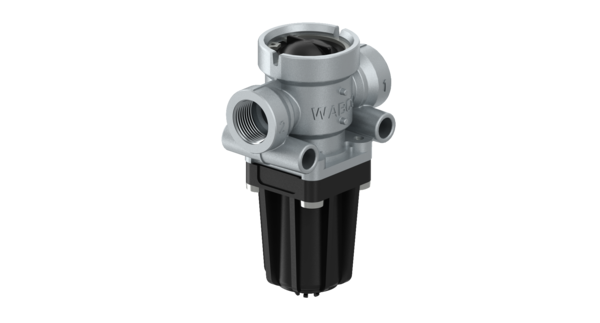

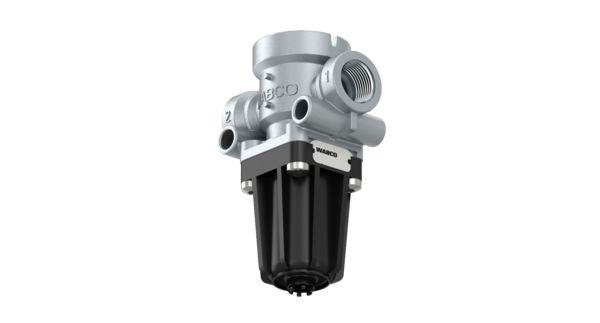

1 x WABCO Pressure Limiting Valve 4750103010, 81521019270, 81521016270,1935018
1 x WABCO Pressure Limiting Valve 4750103010, 81521019270, 81521016270,1935018
Regular price
£103.00 GBP
Regular price
£0.00 GBP
Sale price
£103.00 GBP
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
We ship globally so if you are outside the UK and you have issues with shipping please contact us so we can advise you accordingly.
Premium WABCO Pressure Limiting Valve - 4750103010 applicable to several commercial vehicle application
Technical Specification
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.678 |
| Comments Nominal diameter of exhaust | ø 4 |
| Delivered pressure | 10.0 at p1 = 12.0 bar |
| Distance between bolts | 56 mm |
| Exhaust | Ø 4 mm |
| Max. operating pressure | 20.0 bar |
| Mounting | 2x Ø 8.6 mm |
| Port thread | 1M22 x 1.5 |
| Port thread | 2M22 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Range of adjustment | 9.6 to 12.0 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Size (mm x mm x mm) | 145 x 85 x 55 |
| UPC | 193133255956 |
| Weight (kg) | 0.388 |
| Weight (lb) | 1 |
| Size (mm x mm x mm) | 145 x 85 x 55 |
| GTIN | 04057875222415 |
Manufacturer Cross References
| DAF | 518113 |
| ERF | 81521016270 |
| IRIZAR | 8015532 |
| MAN | 81521016270 |
| MAN | 81521019270 |
| NEOPLAN | 81521016270 |
| PACCAR | 1518113 |
| SCANIA | 1935018 |
| TATRA | 4750103010 |
