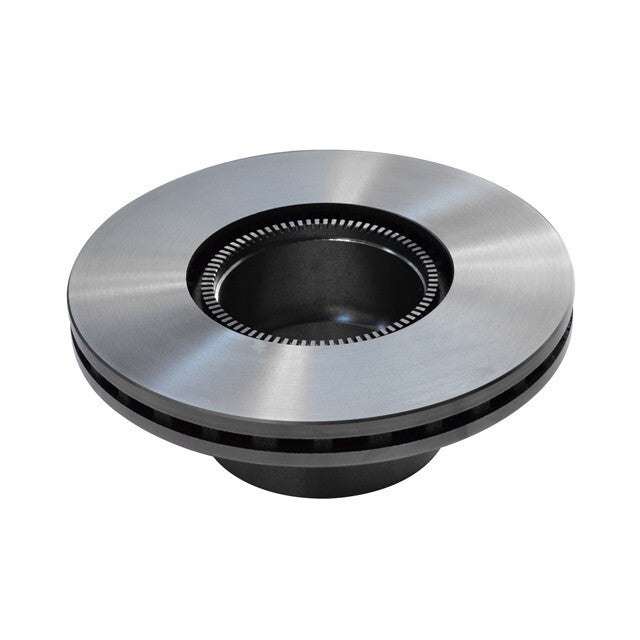

LF45 Brake Disc Front Axle KLTE0185 UC 1400163 1408252 1408670, MBR5100
LF45 Brake Disc Front Axle KLTE0185 UC 1400163 1408252 1408670, MBR5100
Couldn't load pickup availability
Specifications
Brand: Universal Components
Part Number: KLTE0185
Additional Information / Parts: with ABS sensor Ring
Internal Thread Size: M12 x 1,75
Fitment & Position: Front Axle RH/LH
Number of Holes:12
OEM References: 1400163
Weight (KG): 18 Kg
Outer Diameter (mm):330 mm
Brake Disc Type: Internally Vented
Min Thickness: 28mm
Pitch Circle Diameter (mm) : 138mm
Brake Disc Thickness (mm): 34mm
Thickness
(mm): 123mm
OEM REFERENCES
DAF: 1400163, 1408252, 1408670
MERITOR: MBR5100
OPTARE: 1400163, 1408252
FRUEHAUF: CF104749
CROSS REFERENCES
| 0AMS | CHD-004 |
| ADR | 18503301 |
| AP | 20364, 44079 |
| AP-SA | D2003V |
| AUGER | 31409 |
| BERAL | BCR255A, BCR350A |
| BORG & BECK | BBD32663, BBD32781 |
| BRECO | BS 9624 |
| BREMBO | 09.9361.10, 09.E664.20 |
| BREMSI | CD5255V |
| C.E.I. | 215.093 |
| CASALS | 55345 |
| COMLINE | ADC9009V, ADC9032V |
| DON | CVD581, CVD658 |
| DSS | 560051 |
| DT Spare Parts | 5.21223 |
| DURON | DCR255A |
| EBS | 28.21.1002, 28.21.1008 |
| FERODO | FCR255A, FCR350A |
| FRAS-LE | FHDI00125, FHDI00172 |
| GAMA-SA | D2003V, GM21076 |
| IMEX | IMX 0031408670 |
| JURATEK | DAF104, DAF114 |
| JURID | 569127J, 569237J |
| KAWE | NCA1156.20 |
| LPR-SA | D2003V |
| MERITOR | MBR5100 |
| PE Automotive | 106.206-00A |
| REMSA | NCA1156.20 |
| ROADHOUSE | NSX1156.20 |
| SAMKO-SA | D2003V |
| SAMPA | 0 52.258 |
| SBP | 02-DA007 |
| SIGMAUTO | DB0255V |
| ST-TEMPLIN | 03.110.0275.850, 03.110.0275.851 |
| STELLOX | 85-00757-SX |
| SWAG | 59 92 9156 |
| TEXTAR | 93142400 |
| TRW | DF5101S |
| WABCO | 12 999 811 |
| WOKING | NSA1156.20 |
| WTI automotive | K716386 |
| EBS | 28.21.1002 |
| Universal Components | KLTE0185 |
VEHICLE APPLICATION
| Suitable For | Model | Vehicle Type | Vehicle | Years |
| DAF | LF45 | TRUCK | EU | 2001 - 2021 |
| ROR-MERITOR | Other Axle Series | TRAILER | EU | 1970 - 2021 |
If you have to return an item please inform us before you do so. We offer a 30 days return policy. We ask you to cover the return postage cost. All returned goods must be in their original condition in order to be eligible for returns. This includes parts which we have provided fitment advice for. For clarity this means:
- Unused
- No grease, petrol, diesel, oil or any other substance on the goods or box
- Nothing stuck or written on the branded box
- All packaging as new with any seals intact
- No marks which show fitment to a vehicle has been attempted
